MicroStorm Timer Output: FAQ

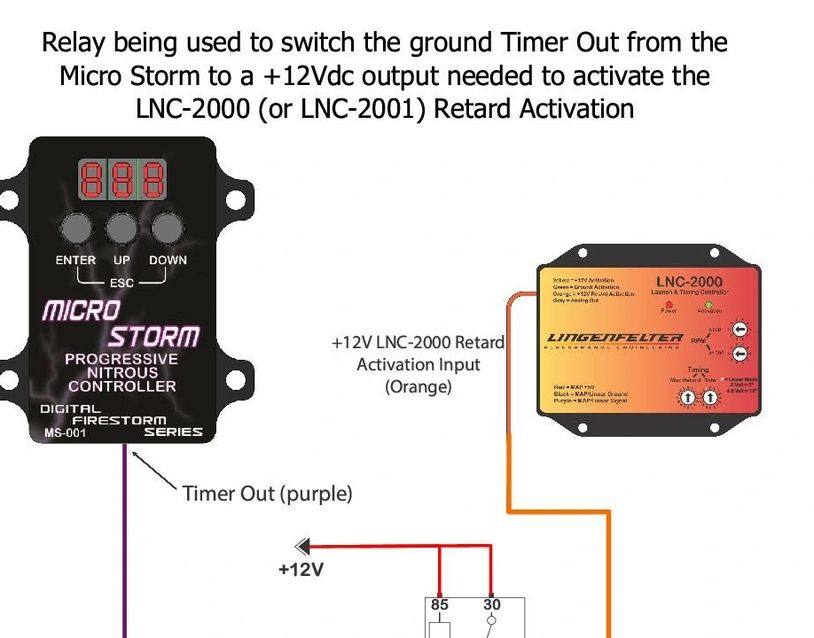

Using a relay to convert the MicroStorm timer output to a +12VDC output
Utilizing a relay conversion allows you to swap the ground output of the MicroStorm timer to the 12VDC output required by the LNC-2000 retard activation input.
FAQ
Using a relay to convert a ground output to a +12VDC output
Using a relay conversion to change the ground output from nearly any device to the necessary 12VDC output required by the MicroStorm timer for timing retard activation.
